| Unit(单位)：mm | |||||||

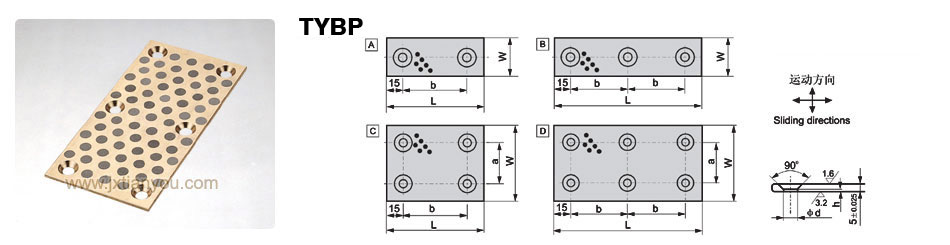

| Standard No. | W | d | l | L | a | b | Sketch |
|---|---|---|---|---|---|---|---|
| HYBP-18X50 | 18 | 6.5 | 1.5 | 50 | - | 20 | A |
| HYBP-18X75 | 75 | 45 | |||||
| HYBP-18X100 | 100 | 70 | |||||
| HYBP-18X150 | 150 | 60 | B | ||||
| HYBP-28X50 | 28 | 10 | 0.8 | 50 | - | 20 | A |
| HYBP-28X75 | 75 | 45 | |||||
| HYBP-28X100 | 100 | 70 | |||||
| HYBP-28X150 | 150 | 60 | B | ||||
| HYBP-38X50 | 38 | 50 | - | 20 | A | ||
| HYBP-38X75 | 75 | 45 | |||||
| HYBP-38X100 | 100 | 70 | |||||
| HYBP-38X150 | 150 | 60 | B | ||||
| HYBP-48X75 | 48 | 75 | - | 45 | A | ||
| HYBP-48X100 | 100 | 70 | |||||
| HYBP-48X125 | 125 | 95 | |||||
| HYBP-48X150 | 150 | 60 | B | ||||
| HYBP-75X75 | 75 | 75 | 45 | 45 | C | ||
| HYBP-75X100 | 100 | 70 | |||||
| HYBP-75X125 | 125 | 95 | |||||
| HYBP-758X150 | 150 | 60 | D | ||||
| HYBP-100X100 | 100 | 100 | 70 | 70 | C | ||
| HYBP-100X125 | 125 | 95 | |||||
| HYBP-100X150 | 150 | 60 | D | ||||
