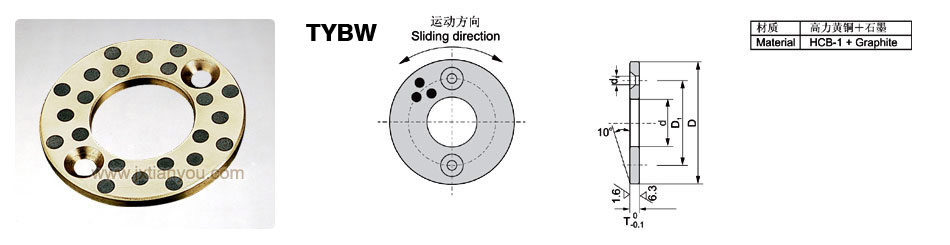

HYBW 尺寸表
Unit(单位)：mm
Stanard No. d D T 0
-0.1 		Bolt
D1 Q'ty size d1
HYBW-10 10.2 30 3 --- --- --- ---
HYBW-12 12.2 40 28 2 M3 3.5
HYBW-13 13.2
HYBW-14 14.2
HYBW-15 15.2 50 35
HYBW-16 16.2
HYBW-16N --- --- --- ---
HYBW-18 18.2 35 2 M3 3.5
HYBW-20 20.2 5 M5 6
HYBW-20N --- --- --- ---
HYBW-25 25.2 55 40 2 M5 6
HYBW-25N --- --- --- ---
HYBW-30 30.2 60 45 2 M5 6
HYBW-35 35.2 70 50
HYBW-40 40.2 80 7 60 M6 7
HYBW-45 45.2 90 67.5
HYBW-50 50.2 100 8 75 4
HYBW-55 55.2 110 85
HYBW-60 60.2 120 90 M8 9
HYBW-65 65.2 125 95
HYBW-70 70.2 130 10 100
HYBW-75 75.2 140 110
HYBW-80 80.2 150 120
HYBW-90 90.2 170 140 M10 11
HYBW-100 100.5 190 160
HYBW-120 120.5 200 175
